QHY Adapter Kit - Combo D1-D2-D3
QHY Adapter Kit
Combo D1
The Combo D1 adapter kit from QHY is compatible with the:
- QHY268C
- QHY600C
- QHY168C
- QHY247C
- QHY128C
- QHY410C
- QHY367C
This kit will connect these devices to the 55mm BFL MPCC. The Combo D1 is supplied as a standard accessory with the QHY600C and QHY268C.
QHY took customer feedback and used it to create a fixed combination of adapter kits to meet the mainstream needs of most users. Since QHY offers so many adapters, there is a variety of back-focus distances that can be intimidating and confusing to new users. Users requested adapters that would provide 55mm of back focus, which is the perfect amount of back focus for astrophotography, in order to accommodate commonly available optical systems with field flatteners / correctors.
Combo D2
QHY has designed this adapter kit to be flexible and comprehensive. With the kit components included in this kit, users can connect a Canon EF Lens to select QHY cameras. With this particular kit, the total back focus length will be 44.1 mm.
The compatible QHY cameras are as follows:
- QHY268C
- QHY600C
- QHY168C
- QHY247C
- QHY128C
- QHY410C
- QHY367C
Combo D3
This D3 Combo adapter kit from QHY has been designed to be flexible and comprehensive. With the kit components included in this kit, users can connect a Nikon F Lens to select QHY cameras. The total back focus length will be 46.5 mm with the kit components in use.
The compatible QHY cameras are as follows:
- QHY268C
- QHY600C
- QHY168C
- QHY247C
- QHY128C
- QHY410C
- QHY367C
Technical Specifications
| Model | Product No. | Compatible with | To Connect | Kit Includes | Note |
| Combo D1 | 20107 | QHY268C (Version before 2023)/ QHY600C-PH/QHY168C/ QHY247C/QHY128C/QHY410C/ QHY367C | 55mm M48 Threads | 5mm M54 to M48 Adapter*12.5mm 2inch Filter Fixer (Original Name 020055) 10mm Spacer*1 14mm Spacer*1 36mm M3 Screws*8 |
D1 is supplied as a standard accessory with QHY600CQHY268C (Version Before 2023) |
| Combo D2 | 20108 | QHY268C (Version before 2023)/ QHY600C-PH/QHY168C/ QHY247C/QHY128C/QHY410C/ QHY367C | Canon EF Lens | 10mm M54 Canon EF Adapter*14mm M54 Screwed Adapter*1 2.5mm 2inch Filter Fixer (Original Name 020055) 3mm Spacer*1 1mm Spacer*1 14mm M3 Screws*8 |
_ |
| Combo D3 | 20109 | QHY268C (Version before 2023)/ QHY600C-PH/QHY168C/ QHY247C/QHY128C/QHY410C/ QHY367C | Nikon F Lens | 12mm M54 Nikon F Adapter*14mm M54 Screwed Adapter*1 2.5mm 2inch Filter Fixer (Original Name 020055) 3mm Spacer*1 1mm Spacer*1 0.5mm Spacer*1 14mm M3 Screws*8 |
In the Box

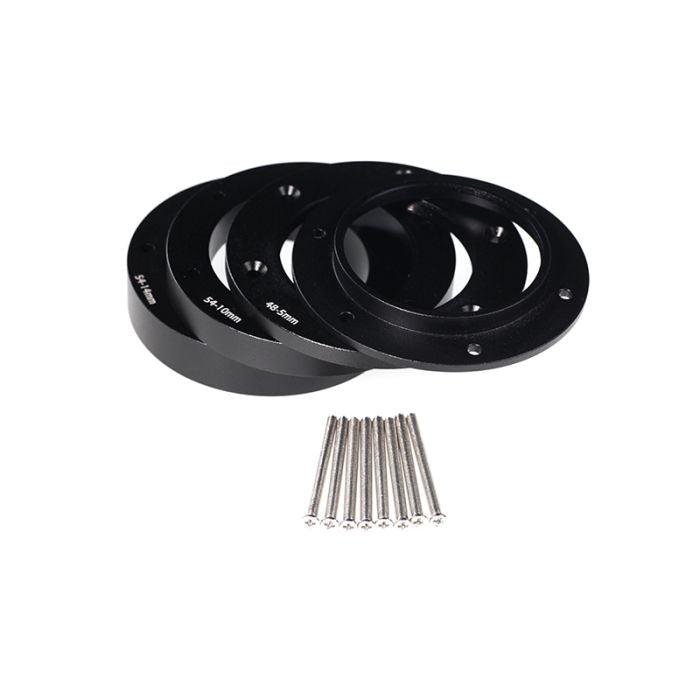

Combo D1
- One 5mm M54 to M48 Adapter
- One 2.5mm 2-inch Filter Fixer (original part# 020055)
- One 10mm Spacer
- One 14mm Spacer
- Eight 36mm M3 Screws

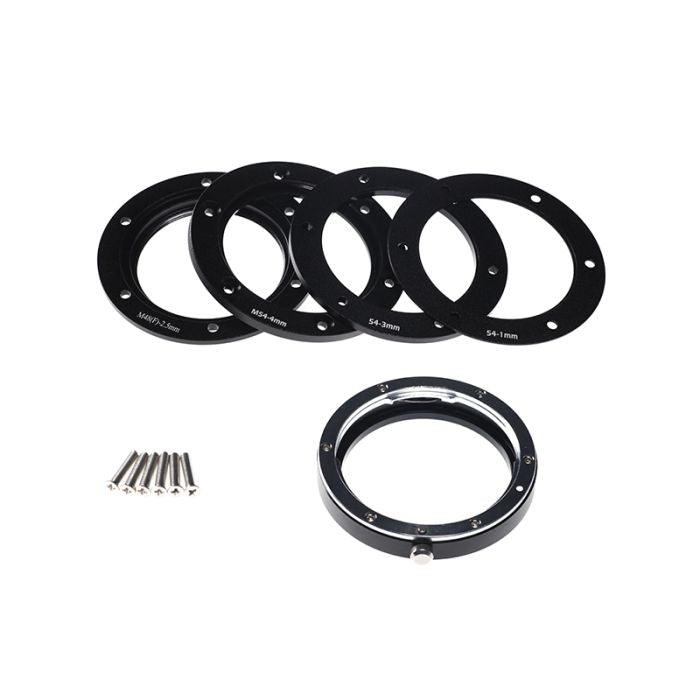

Combo D2
- One 10mm M54 Canon EF Adapter
- One 4mm M54 Screwed Adapter
- One 2.5mm 2-inch Filter Fixer (original part# 020055)
- One 3mm Spacer
- One 1mm Spacer
- Eight 14mm M3 Screws

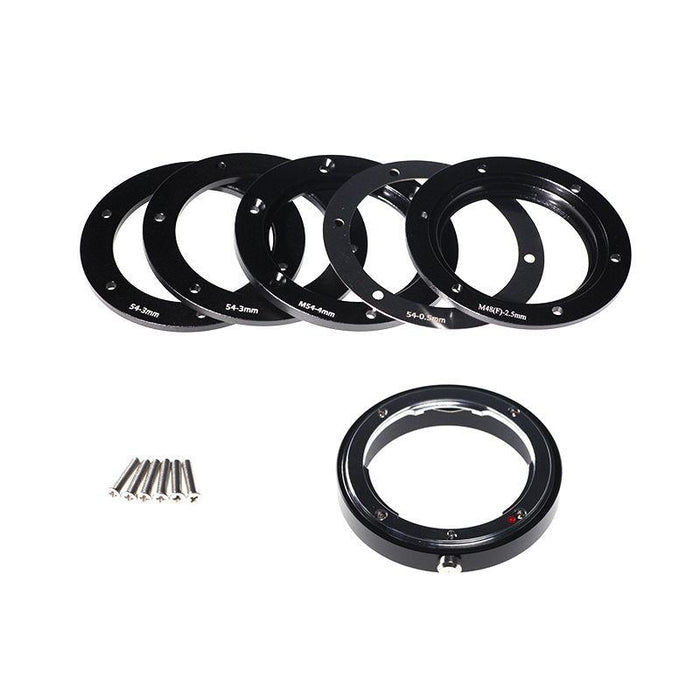

Combo D3
- 10 mm M54 Nikon F Adapter
- 4 mm M54 Screwed Adapter
- 2.5 mm 2" Filter Fixer
- Two 3 mm Spacers
- 0.5 mm Spacer
- Eight 16 mm M3 Screws
