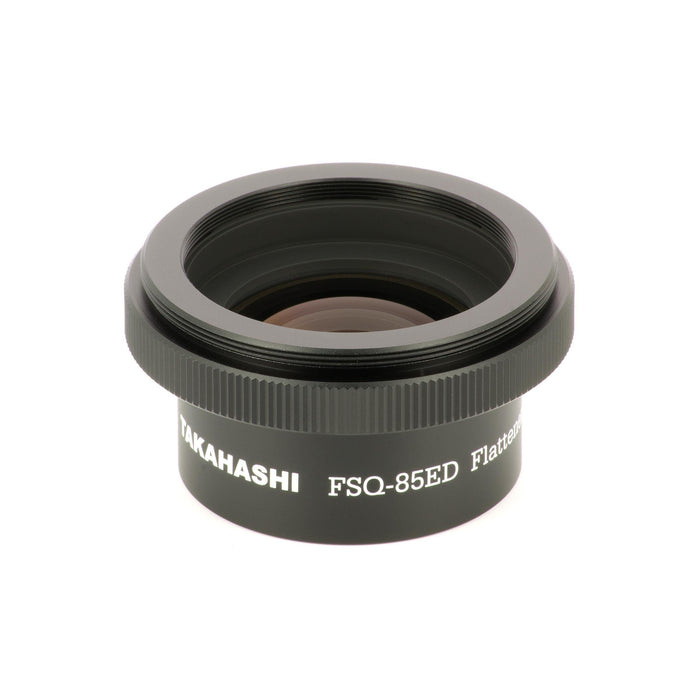

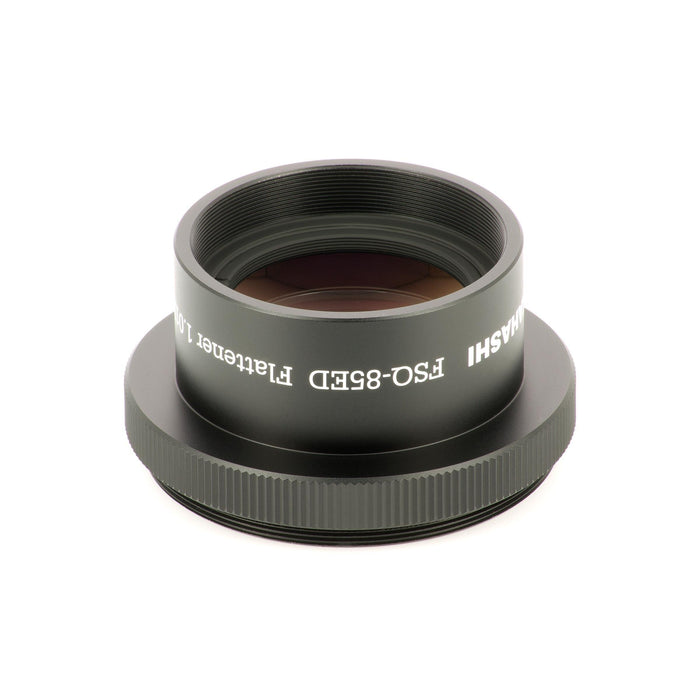

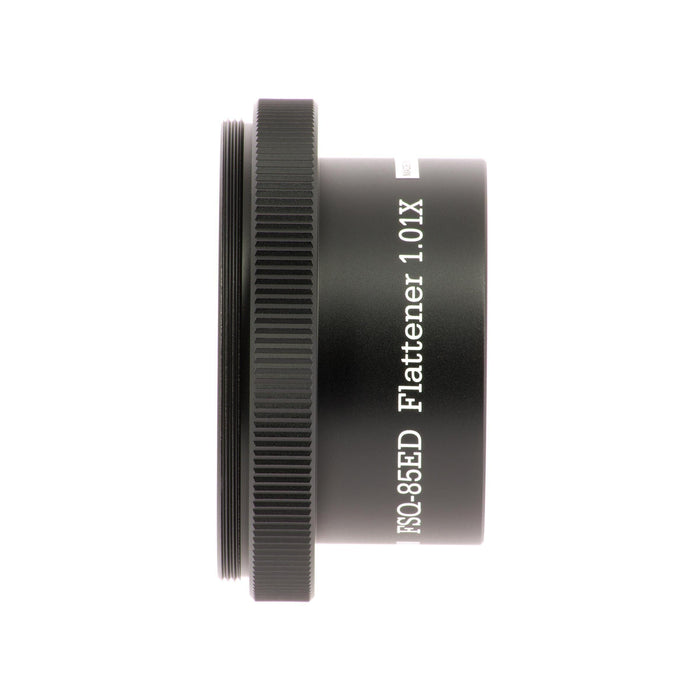

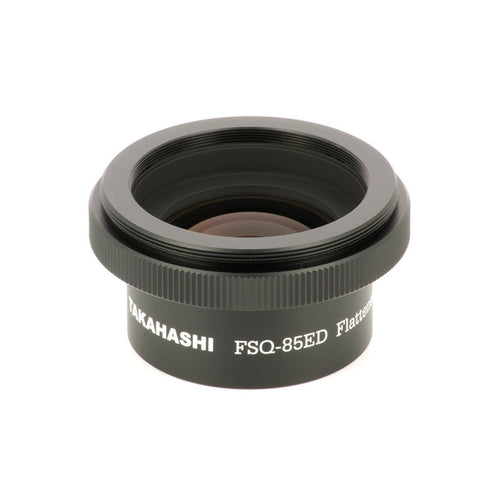

Takahashi 1.01x Flattener for FSQ-85ED (TKA37582)

Takahashi 1.01x Flattener for FSQ-85ED

The FSQ-85EDX's additional corrector to cover full-frame sensors

With the continuous development of DSLRs and CCD/CMOS cameras, more and more astrophotographers are equipping themselves with imaging systems with large, full-format, small-pixel sensors. This change is a real challenge for conventional refractors, most of whose lenses have been designed to best cover the APS-C format. Although the Takahashi FSQ-85EDX is designed as a Petzval quadruplet, the full-format sensor coverage was not perfect and the edge of the field suffered from a slight astigmatism typical of this optical system. Takahashi offers a dedicated corrector to correct this defect and thus offer results close to those of the FSQ-106ED. The field is perfectly corrected on a diameter of 44 mm. The flattener causes the focal length of the FSQ-85EDX to be slightly increased (by a factor of 1.01x) from 450 mm (F/5.3) to 455 mm (F/5.4).

The flattener has a M72x1 male thread on the telescope side and a M54x0.75 female thread on the camera side. The required backfocus behind the corrector is 56.2 mm. A female thread at the front accepts filters with an M58 thread.

Technical Specifications

Takahashi FL1.01X (FSQ-85EDX) field corrector

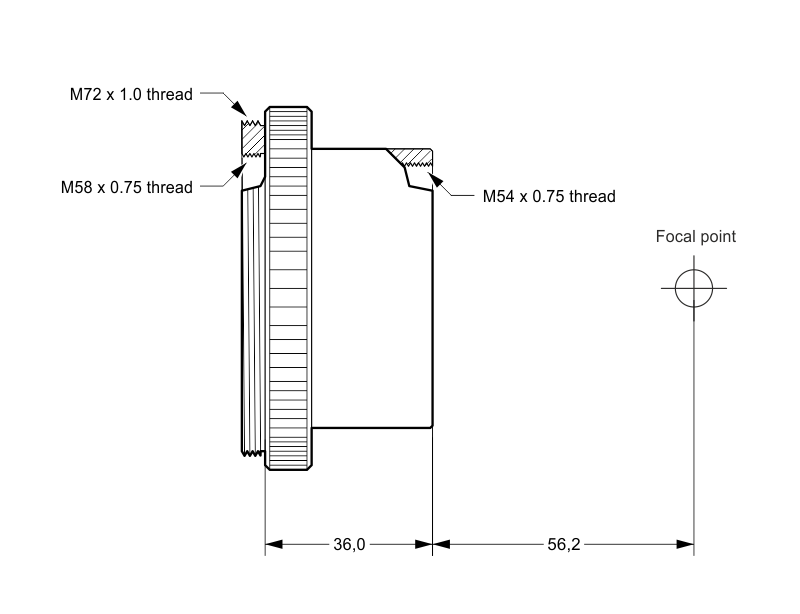

Diagram of the focal point position and threads of the Takahashi FL1.01X field corrector

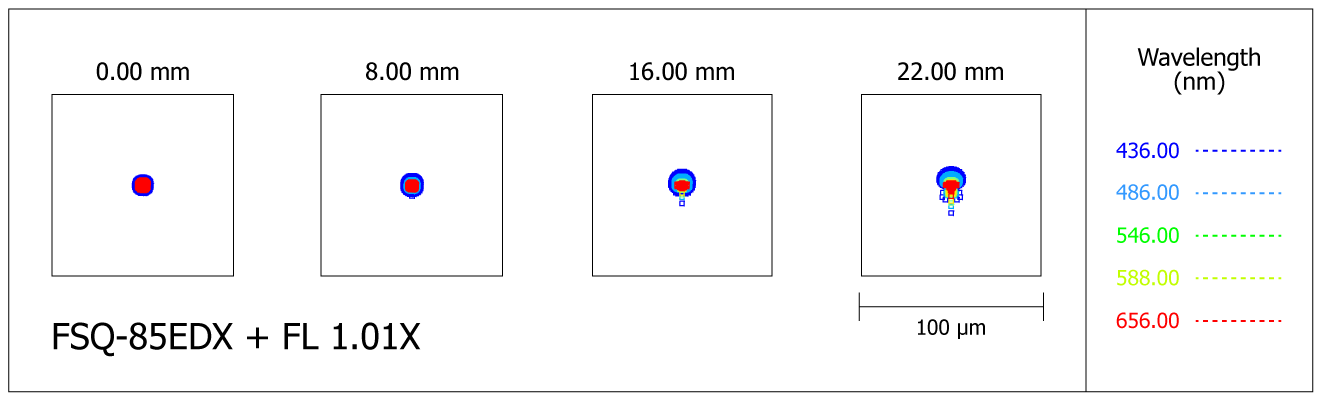

Spot-diagram of Takahashi FSQ-85EDX refractor with FL1.01X field corrector

In the Box

• Takahashi 1.01x Flattener for FSQ-85ED
