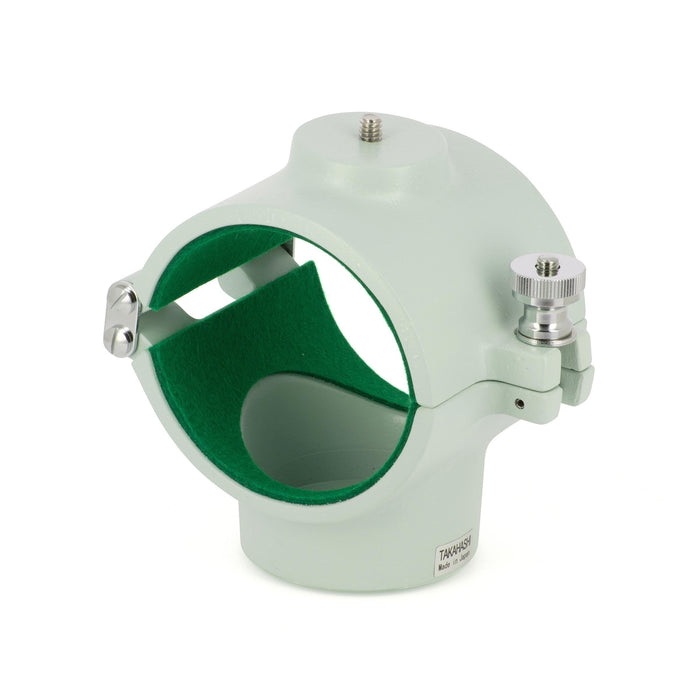

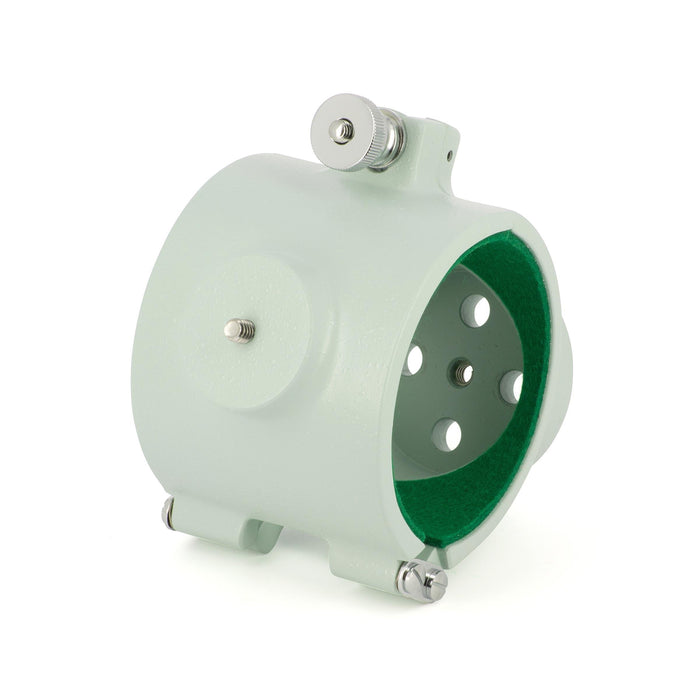

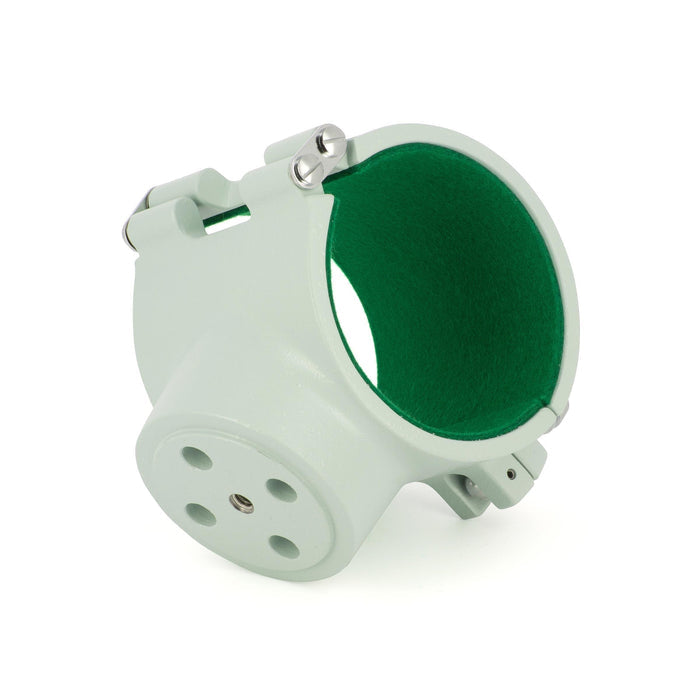

Takahashi Tube ring 80QS (TKA20420Q)

Takahashi Tube ring 80QS

Cradles are the standard tube rings for fixing Takahashi optical tube assemblies to the mounts. Footprints of the cradles are adapted to the heads of the Takahashi mounts. They are systematically provided with two 8.8 mm diameter holes; they are fixed to the Takahashi mounts by means of 2 M8 screws, delivered with cradles. The top of the cradle has a small flat surface with a 1/4"-20tpi screw (Kodak). It is possible to attach a camera to it in parallel.

Takahashi cradles are made of cast aluminium. The finishing of each one is done manually. Felt parts ensure the protection of the optical tube.

Technical Specifications

Takahashi 80QS cradle (FC-76DC)

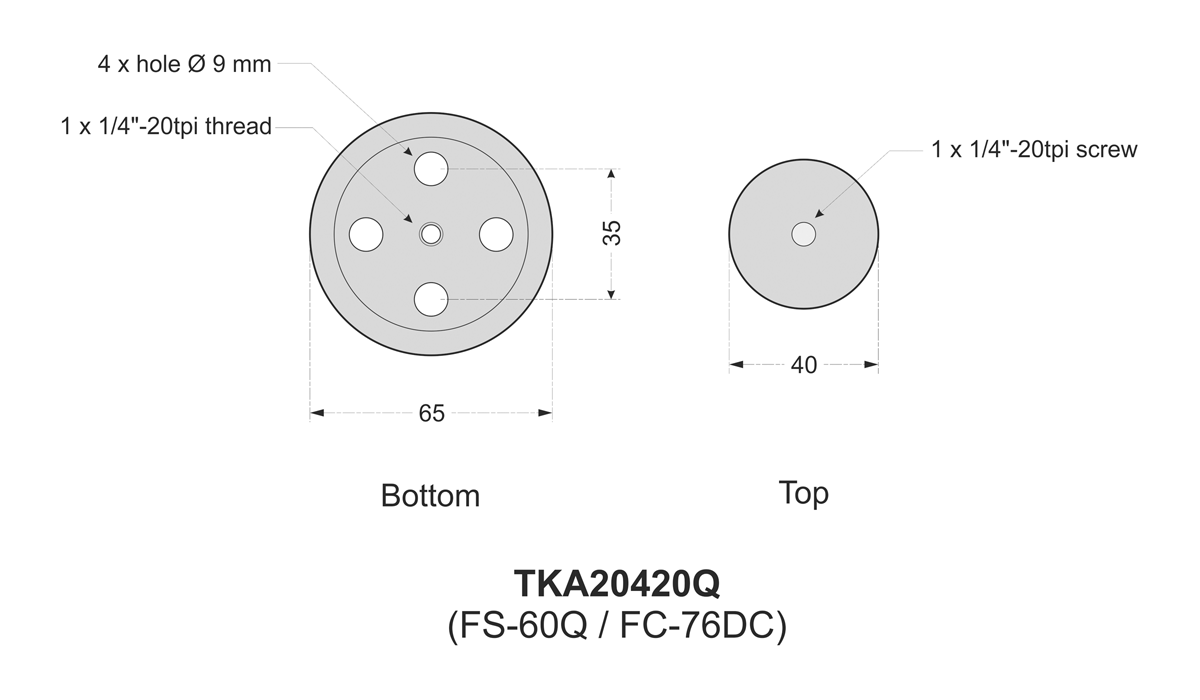

Footprints of top plate and rings of the Takahashi 80QS cradle

In the Box

Takahashi Tube ring 80QS

Manual & Warranty

Takahashi 5-Years Warranty
